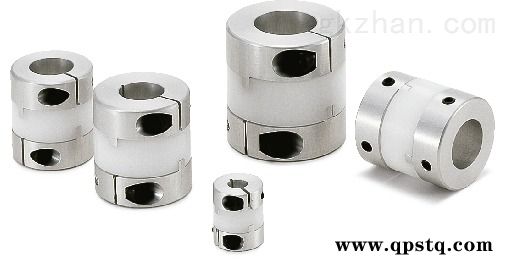

MOR MOR-C MOR-K MOR-CK系列
撓性聯軸器 - 十字滑塊型 - 定位螺絲固定型
Oldham-type Flexible Coupling
●所有產品均附帶內六角止動螺絲。
●軸孔徑為φ4以下時，附帶1個止動螺絲。
●適用軸徑的*尺寸公差為h6及h7。
●也承接1個軸套是定位螺絲固定型、另1個軸套是夾緊型等組合的訂貨。
●可對軸孔和鍵槽進行追加工。請使用追加工服務。
材質、表面處理
MOR/MOR-C/MOR-K/MOR-CK
軸套 A2017
陽極氧化處理
間隔體 聚縮醛
內六角止動螺絲 SCM435
四氧化三鐵保護膜（黑）
內六角螺栓 SCM435
四氧化三鐵保護膜（黑）
構造
定位螺絲固定型
MOR MOR
MOR_構造
夾緊型
MOR-C MOR-C
MOR_構造
定位螺絲固定型＋鍵槽型
MOR-K MOR-K
MOR_構造
夾緊型＋鍵槽型
MOR-CK MOR-CK
MOR_構造
特點
適用馬達
MOR
伺服馬達 -
步進馬達 ○
通用馬達 ◎
◎：特優 ○：優
特性
MOR
高扭矩 ◎
容許誤差調整 ◎
軸向反作用力小 ◎
電絕緣性 ◎
可使用溫度 -20℃～80℃
◎：特優 ○：優
十字滑塊型撓性聯軸器。
通過軸套與間隔體的滑移，允許有較大偏心、偏角存在。
因誤差調整量而產生的軸向反作用力變小，減輕了軸的負擔。
構造簡單，組裝方便。
用途
陰極濺鍍裝置/零件進料器/縫紉機/娛樂器材
型號列表
MOR-10
MOR-10-2-2MOR-10-2-3MOR-10-2-4MOR-10-3-3MOR-10-3-4MOR-10-4-4
MOR-12
MOR-12-3-3MOR-12-3-4MOR-12-3-5MOR-12-4-4MOR-12-4-5MOR-12-5-5
MOR-15
MOR-15-4-4MOR-15-4-5MOR-15-4-6MOR-15-4-6.35MOR-15-4-8MOR-15-5-5MOR-15-5-6MOR-15-5-6.35MOR-15-5-8MOR-15-6-6MOR-15-6-6.35MOR-15-6-8MOR-15-6.35-6.35MOR-15-6.35-8MOR-15-8-8
MOR-17
MOR-17-4-4MOR-17-4-5MOR-17-4-6MOR-17-4-6.35MOR-17-4-8MOR-17-5-5MOR-17-5-6MOR-17-5-6.35MOR-17-5-8MOR-17-6-6MOR-17-6-6.35MOR-17-6-8MOR-17-6.35-6.35MOR-17-6.35-8MOR-17-8-8
MOR-20
MOR-20-4-4MOR-20-4-5MOR-20-4-6MOR-20-4-6.35MOR-20-4-8MOR-20-4-9.525MOR-20-4-10MOR-20-4-12MOR-20-5-5MOR-20-5-6MOR-20-5-6.35MOR-20-5-8MOR-20-5-9.525MOR-20-5-10MOR-20-5-12MOR-20-6-6MOR-20-6-6.35MOR-20-6-8MOR-20-6-9.525MOR-20-6-10MOR-20-6-12MOR-20-6.35-6.35MOR-20-6.35-8MOR-20-6.35-9.525MOR-20-6.35-10MOR-20-6.35-12MOR-20-8-8MOR-20-8-9.525MOR-20-8-10MOR-20-8-12MOR-20-9.525-9.525MOR-20-9.525-10MOR-20-9.525-12MOR-20-10-10MOR-20-10-12MOR-20-12-12
MOR-26
MOR-26-5-5MOR-26-5-6MOR-26-5-6.35MOR-26-5-8MOR-26-5-9.525MOR-26-5-10MOR-26-5-12MOR-26-5-14MOR-26-6-6MOR-26-6-6.35MOR-26-6-8MOR-26-6-9.525MOR-26-6-10MOR-26-6-12MOR-26-6-14MOR-26-6.35-6.35MOR-26-6.35-8MOR-26-6.35-9.525MOR-26-6.35-10MOR-26-6.35-12MOR-26-6.35-14MOR-26-8-8MOR-26-8-9.525MOR-26-8-10MOR-26-8-12MOR-26-8-14MOR-26-9.525-9.525MOR-26-9.525-10MOR-26-9.525-12MOR-26-9.525-14MOR-26-10-10MOR-26-10-12MOR-26-10-14MOR-26-12-12MOR-26-12-14MOR-26-14-14
MOR-30
MOR-30-8-8MOR-30-8-9.525MOR-30-8-10MOR-30-8-12MOR-30-8-14MOR-30-8-15MOR-30-8-16MOR-30-9.525-9.525MOR-30-9.525-10MOR-30-9.525-12MOR-30-9.525-14MOR-30-9.525-15MOR-30-9.525-16MOR-30-10-10MOR-30-10-12MOR-30-10-14MOR-30-10-15MOR-30-10-16MOR-30-12-12MOR-30-12-14MOR-30-12-15MOR-30-12-16MOR-30-14-14MOR-30-14-15MOR-30-14-16MOR-30-15-15MOR-30-15-16MOR-30-16-16
MOR-34
MOR-34-10-10MOR-34-10-12MOR-34-10-14MOR-34-10-15MOR-34-10-16MOR-34-12-12MOR-34-12-14MOR-34-12-15MOR-34-12-16MOR-34-14-14MOR-34-14-15MOR-34-14-16MOR-34-15-15MOR-34-15-16MOR-34-16-16
MOR-38
MOR-38-10-10MOR-38-10-12MOR-38-10-14MOR-38-10-15MOR-38-10-16MOR-38-10-18MOR-38-10-20MOR-38-12-12MOR-38-12-14MOR-38-12-15MOR-38-12-16MOR-38-12-18MOR-38-12-20MOR-38-14-14MOR-38-14-15MOR-38-14-16MOR-38-14-18MOR-38-14-20MOR-38-15-15MOR-38-15-16MOR-38-15-18MOR-38-15-20MOR-38-16-16MOR-38-16-18MOR-38-16-20MOR-38-18-18MOR-38-18-20MOR-38-20-20
MOR-45
MOR-45-10-10MOR-45-10-12MOR-45-10-14MOR-45-10-15MOR-45-10-16MOR-45-10-18MOR-45-10-20MOR-45-10-22MOR-45-12-12MOR-45-12-14MOR-45-12-15MOR-45-12-16MOR-45-12-18MOR-45-12-20MOR-45-12-22MOR-45-14-14MOR-45-14-15MOR-45-14-16MOR-45-14-18MOR-45-14-20MOR-45-14-22MOR-45-15-15MOR-45-15-16MOR-45-15-18MOR-45-15-20MOR-45-15-22MOR-45-16-16MOR-45-16-18MOR-45-16-20MOR-45-16-22MOR-45-18-18MOR-45-18-20MOR-45-18-22MOR-45-20-20MOR-45-20-22MOR-45-22-22
MOR-55
MOR-55-14-14MOR-55-14-15MOR-55-14-16MOR-55-14-18MOR-55-14-20MOR-55-14-22MOR-55-14-25MOR-55-15-15MOR-55-15-16MOR-55-15-18MOR-55-15-20MOR-55-15-22MOR-55-15-25MOR-55-16-16MOR-55-16-18MOR-55-16-20MOR-55-16-22MOR-55-16-25MOR-55-18-18MOR-55-18-20MOR-55-18-22MOR-55-18-25MOR-55-20-20MOR-55-20-22MOR-55-20-25MOR-55-22-22MOR-55-22-25MOR-55-25-25
MOR-6
MOR-6-1-1MOR-6-1-1.5MOR-6-1-2MOR-6-1.5-1.5MOR-6-1.5-2MOR-6-2-2
MOR-68
MOR-68-18-18MOR-68-18-20MOR-68-18-22MOR-68-18-25MOR-68-18-28MOR-68-18-30MOR-68-18-35MOR-68-18-38MOR-68-20-20MOR-68-20-22MOR-68-20-25MOR-68-20-28MOR-68-20-30MOR-68-20-35MOR-68-20-38MOR-68-22-22MOR-68-22-25MOR-68-22-28MOR-68-22-30MOR-68-22-35MOR-68-22-38MOR-68-25-25MOR-68-25-28MOR-68-25-30MOR-68-25-35MOR-68-25-38MOR-68-28-28MOR-68-28-30MOR-68-28-35MOR-68-28-38MOR-68-30-30MOR-68-30-35MOR-68-30-38MOR-68-35-35MOR-68-35-38MOR-68-38-38
MOR-8
MOR-8-1-1MOR-8-1-2MOR-8-1-3MOR-8-2-2MOR-8-2-3MOR-8-3-3
