| 材質 | 軸承鋼 |
|---|---|
| 用途 | 工業 |
| 是否標準件 | 標準件 |
| 樣品或現貨 | 現貨 |
| 是否進口 | 非進口 |
| 品牌 | 天牛 |

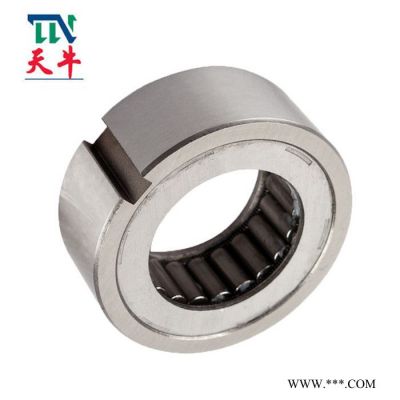

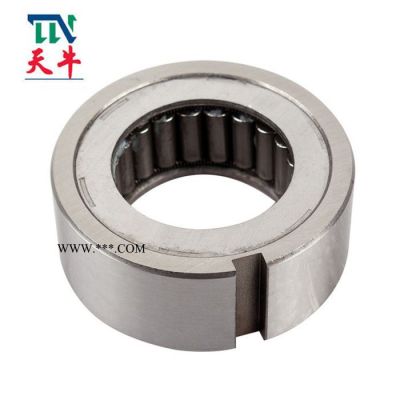

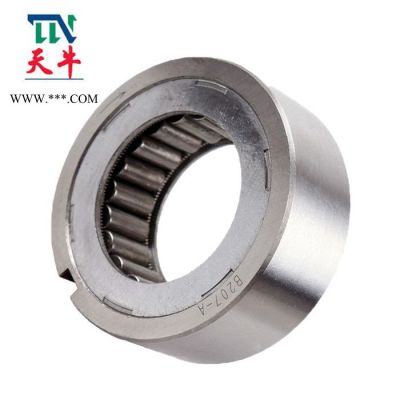

| 型號 | B206 B206EK B207 B208 |
| 加工定制 | 是 |
| 軸承材質 | 軸承鋼 |
| Model | Torque Capacity | Drag Torque | Max .Overrunning (r/min) | Max.Idexing (cycle/min) | A(+0 to -0.6) | B | Keyway | With JIS Bearing No. | Shaft Dia. C(+0 to -0.025) | Weight | ||
| (N.m) | (N.m) | |||||||||||
| Shaft | Outer Race | (kg) | ||||||||||
| B203 | 39.2 | 0.1 | 2400 | 500 | 150 | 25 | 40(-0.014-0.039) | 4X2.5 | 6203 | 16.51 | 0.23 | |
| B204 | 58.8 | 0.1 | 2400 | 500 | 150 | 25 | 47(-0.014-0.039) | 5X3 | 6204 | 18.796 | 0.34 | |
| B205 | 98 | 0.2 | 1800 | 400 | 150 | 25 | 52(0.017-0.042) | 5X3 | 6205 | 23.622 | 0.45 | |
| B206 | 235 | 0.2 | 1800 | 350 | 150 | 28 | 62(-0.017-0.042) | 7X4 | 6206 | 32.766 | 0.68 | |
| B207 | 372 | 0.2 | 1800 | 300 | 150 | 28 | 72(-0.017—0.042) | 7X4 | 6207 | 42.088 | 0.8 | |
| B208 | 549 | 0.2 | 1800 | 200 | 150 | 32 | 80(-0.017-0.042) | 10X4.5 | 6208 | 46.761 | 0.91 | |
| B209 | 549 | 0.2 | 1800 | 200 | 150 | 32 | 85(-0.020-0.045) | 10X4.5 | 6209 | 46.761 | 0.95 | |
| B2010 | 784 | 0.29 | 1200 | 200 | 150 | 32 | 90(-0.020-0.045) | 10X4.5 | 6210 | 56.109 | 1 | |
| B2011 | 784 | 0.29 | 1200 | 200 | 150 | 32 | 100(-0.020-0.050) | 10X4.5 | 6211 | 56.109 | 1.4 | |
| B2012 | 1230 | 0.29 | 1200 | 180 | 150 | 42 | 110(-0.020-0.050) | 10X4.5 | 6212 | 70.029 | 1.8 | |
| B2013 | 1230 | 0.29 | 1200 | 180 | 150 | 42 | 120(-0.020-0.050) | 10X4.5 | 6213 | 70.029 | 2.3 | |
| B2014 | 1390 | 0.39 | 180 | 180 | 150 | 42 | 125(-0.024-0.060) | 12X4.5 | 6214 | 79.356 | 2.4 | |
