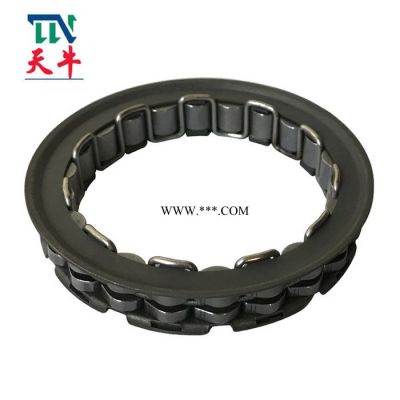

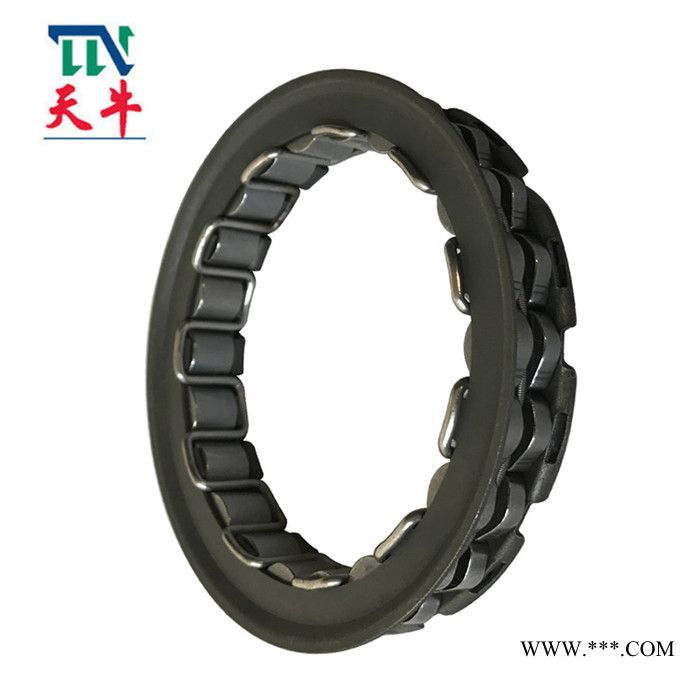

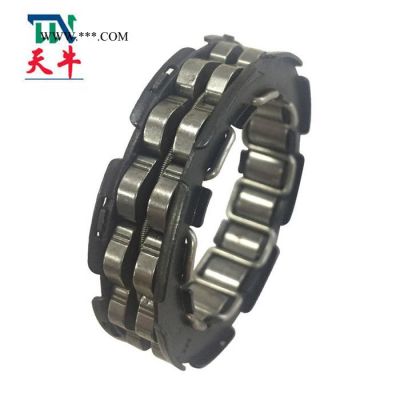

| 離合器類型 | 超越離合器 |
|---|---|
| 材質 | 軸承鋼 |
| 產地 | 常州 |
| 適用車型 | KRISS |
| 品牌 | 天牛 |
| 型號 | FWD331608BRS 9104 |
| Type | Inner race | Outer race | min. Width | Nominal torque | Weight |
| D+0.008 | D 0±0.013 | W(mm) | Kgf-m | g | |
| FWD331608BRB | 39.627 | 56.294 | 13.0 | 27 | 73 |
| FWD331808BRB | 45.666 | 62.332 | 13.3 | 35 | 83 |
| FWD332008BRB | 51.71 | 68.377 | 13.3 | 45 | 92 |
| FWD332211BRB | 57.76 | 74.427 | 16.3 | 78 | 134 |
| Type | Inner race | Outer race | min. Width | Nominal torque | Weight |
| D+0.008 | D 0±0.013 | W(mm) | Kgf-m | g | |
| FWD331608BRS | 39.627 | 56.294 | 13.0 | 27 | 77 |
| FWD331808BRS | 45.666 | 62.332 | 13.3 | 35 | 87 |
| FWD332008BRS | 51.71 | 68.377 | 13.3 | 45 | 97 |
| FWD332211BRS | 57.76 | 74.427 | 16.3 | 78 | 134 |
| Type | Inner race | Outer race | min. Width | A | B | C+0.2 | Nominal torque | Weight |
| D+0.008 | D 0±0.013 (mm) | W(mm) | (mm) | (mm) | (mm) | Kgf-m | g | |
| FWD331608CRB | 39.627 | 56.294 | 13.0 | 60 | 62 | 1.0 | 27 | 73 |
| FWD331808CRB | 45.666 | 62.332 | 13.3 | 65 | 68 | 1.0 | 35 | 83 |
| FWD332008CRB | 51.71 | 68.377 | 13.3 | 71 | 74 | 1.0 | 45 | 92 |
| FWD332211CRB | 57.76 | 74.427 | 16.3 | 76 | 79 | 1.0 | 78 | 134 |
| Type | Inner race | Outer race | min. Width | A | B | C+0.2 | Nominal torque | Weight |
| D+0.008 | D 0±0.013 (mm) | W(mm) | (mm) | (mm) | (mm) | Kgf-m | g | |
| FWD331608CRS | 39.627 | 56.294 | 13.0 | 60 | 62 | 1.0 | 27 | 73 |
| FWD331808CRS | 45.666 | 62.332 | 13.3 | 65 | 68 | 1.0 | 35 | 83 |
| FWD332008CRS | 51.71 | 68.377 | 13.3 | 71 | 74 | 1.0 | 45 | 92 |
| FWD332211CRS | 57.76 | 74.427 | 16.3 | 76 | 79 | 1.0 | 78 | 134 |
| Type
| Inner race
| Outer race
| Wmin
|
Wmin
| D-C | Tkn
| Weight |
| D +0.008 ‑-0.005 | DO ±0.013 (mm) | W | W1 | (Kgf-m) | (g) | ||
| (mm) | (mm) | (mm) | (mm) | ||||
| FWD331608PRB | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 70 |
| FWD331808PRB | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 80 |
| FWD332008PRB | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 89 |
| FWD332211PRB | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 130 |
| Type
| Inner race
| Outer race
| Wmin
|
Wmin
|
D-C
| Tkn
| Weight |
| D +0.008 ‑-0.005 | DO ±0.013 (mm) | W | W1 | (Kgf-m) | (g) | ||
| (mm) | (mm) | (mm) | (mm) | ||||
| FWD331608PRS | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 75 |
| FWD331808PRS | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 85 |
| FWD332008PRS | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 94 |
| FWD332211PRS | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 139 |
