| 加工定制 | 否 |
|---|---|
| 結構形式 | 工字梁 |
| 輪距 | 1823（mm） |
| 輪輞規格 | 7.0-20/9.00-20 |
| 配件編號 | Q1-30S42B-00005 |
| 適用車型 | 東風，宇通 |
| 最大載荷 | 3000（kg） |
| 材質 | 鑄件 |
| 產地 | 河南 |
| 品牌 | DFKC |
| 型號 | Q1-30S42B-00005 |

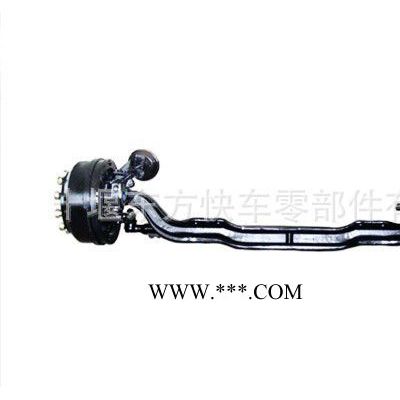

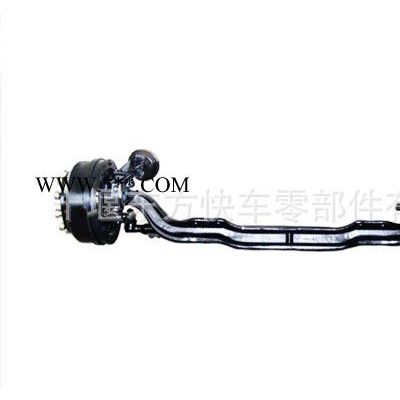

Q1-30S42B-00005前橋總成
Q1-30S42B-00005前橋總成
Q1-30S42B-00005前橋總成
Q1-30S42B-00005前橋總成
| 1 | 30N-01021 | 轉向節主銷 | king pin | 2 |
| 2 | 30N-01033 | 堵塞-轉向節 | plug,steering knuckle | 2 |
| 3 | 30XN45-01011 | 前軸 | front axle | 1 |
| 4 | 30N-01031 | 楔形鎖銷－主銷 | wedgy locking pin,king pin | 2 |
| 5 | 30N-01015 | 左轉向節總成 | left steering knuckle assy | 1 |
| 6 | 30N-01017 | 左轉向節 | left steering knuckle | 1 |
| 7 | 30N-01019 | 上襯套 | upper bushing | 2 |
| 8 | 30N-01020 | 下襯套 | lower bushing | 2 |
| 9 | 30N-01016 | 右轉向節總成 | right steering knuckle assy | 1 |
| 10 | 30N-01018 | 右轉向節 | right steering knuckle | 1 |
| 11 | 30JS-01044 | 直拉桿臂 | drag rod arm | 1 |
| 12 | 30N-01022~01029 | 調整墊片-轉向節 | adjust washer,steering knuckle | 按需 |
| 13 | 30N-01042 | 右轉向節臂 | right steering knuckle arm | 1 |
| 14 | 30N-01041 | 左轉向節臂 | left steering knuckle arm | 1 |
| 15 | 41352X-90072 | 左支架-前制動氣室 | left bracket,front brake air chamber | 1 |
| 16 | 41351X-90072 | 右支架-前制動氣室 | right bracket,front brake air chamber | 1 |
| 17 | 30N-01037 | 主銷堵蓋總成 | plug cover assy,king pin | 2 |
| 18 | 3501NS08-010 | 前左制動器總成 | front left brake assy | 1 |
| 19 | 3501NSZ-025 | 前左制動底板總成 | front left brake base plate assy | 1 |
| 20 | 41039 90611A | 前制動摩擦片 | front brake liner | 4 |
| 21 | 41318 90113 | 前左上防塵罩總成 | front left upper dust cover assy | 1 |
| 22 | 41307 90119 | 前左下防塵罩 | front left lower dust cover | 1 |
| 23 | 3501XD26-041 | 前左制動凸輪 | front brake cam | 1 |
| 24 | 3501NS08-015 | 前右制動器總成 | front right brake assy | 1 |
| 25 | 3501NSZ-125 | 前右制動底板總成 | front right brake base plate assy | 1 |
| 26 | 41039 90611A | 前制動摩擦片 | front brake liner | 4 |
| 27 | 41318 90112 | 前右下防塵罩 | front right lower dust cover | 1 |
| 28 | 41307 90118 | 前右上防塵罩總成 | front right upper dust cover assy | 1 |
| 29 | 3501XD26-042 | 前右制動凸輪 | front right brake cam | 1 |
| 30 | 3519ZS06-015 | 前右制動氣室總成 | front right brake air chamber assy | 1 |
| 31 | 3519ZS06-010 | 前左制動氣室總成 | front left brake air chamber assy | 1 |
| 32 | 35CK-01065-B | 前左制動鼓輪轂總成 | front left brake drum & hub assy | 1 |
| 33 | 31CK-03015 | 前輪轂 | front **d> | 2 |
| 34 | 35NX12-01075 | 前制動鼓 | front brake drum | 2 |
| 35 | 31NB-03051 | 左前輪螺栓 | left front wheel bolt | 10 |
| 36 | 31N-03059 | 螺母-緊固制動鼓 | nut,fixing brake drum | 10 |
| 37 | Q40522 | 重型彈簧墊圈 | heavy spring washer | 10 |
| 38 | 31N-03020 | 輪轂內軸承總成 | hub inner bearing assy | 2 |
| 39 | 31N-03030 | 輪轂外軸承總成 | hub outer bearing assy | 2 |
| 40 | 31N-03080 | 前輪轂油封總成 | front hub seal ring assy | 2 |
| 41 | 35CK-01066-B | 前右制動鼓輪轂總成 | front right brake drum & hub assy | 1 |
| 42 | 31NB-03052 | 右前輪螺栓 | right front wheel bolt | 10 |
| 43 | 33CK-03050 | 橫拉桿總成 | tie rod assy | 1 |
| 44 | 31N-03061 | 前輪轂蓋 | front hub cover | 2 |
| 45 | 31N-03055 | 左車輪螺母 | left wheel nut | 10 |
| 46 | 31N-03056 | 右車輪螺母 | right wheel nut | 10 |
